| Quantity: | |
|---|---|
1575A
MACh
8441.8090
New
PLC

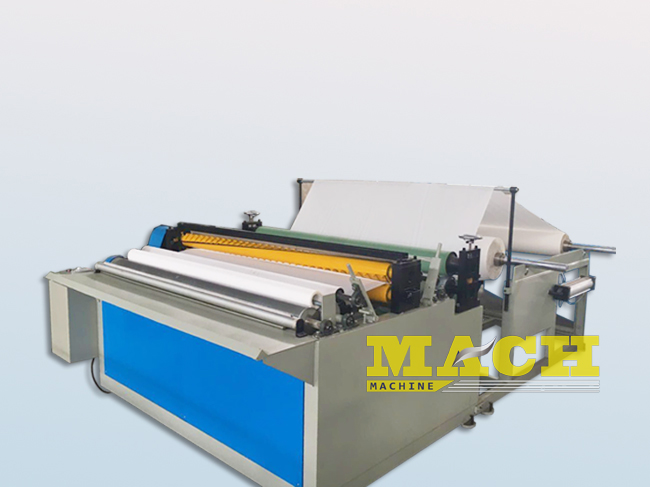

Paper Slitting and Rewinding Machine
80-120m/min 10000-15000 rolls/8 hours
380V, 50Hz, 3 Phases or 220V, 60Hz, 3 Phases
1750mm
5.5 x 2.6 x 1.7m
2000kg
CE
one year after receiving our machine
| Model | 1092A | 1575A | 1760A | \ | 2200A | 2500A | 2800A |
| Jumbo Roll Max. width | 1350 | 1750 | 1880 | \ | 2150 | 2400 | 2700 |
| Jumbo Roll Max. diameter | Standard φ1100mm unless otherwise specified | ||||||
| Quantity of Standings | 1-3 stands (please specify when order) | ||||||
| Jumbo Roll Inner core | Standardφ3”(76.2mm) unless otherwise specified | ||||||
| Counter | Sheets counter | ||||||
| Working speed | 100-150 meters/min ( around 10,000--14,000 rolls / 8 hours ) | ||||||
| Finished Log Outer Core | φ90-135mm | ||||||
| Finished Log Inner Core | φ25-50m | ||||||
| Mechanical driving | Driving by chains | ||||||
| Air -system | 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user) | ||||||
| Main driving | electromagnetism speed regulation 3KW 380V,50HZ | ||||||

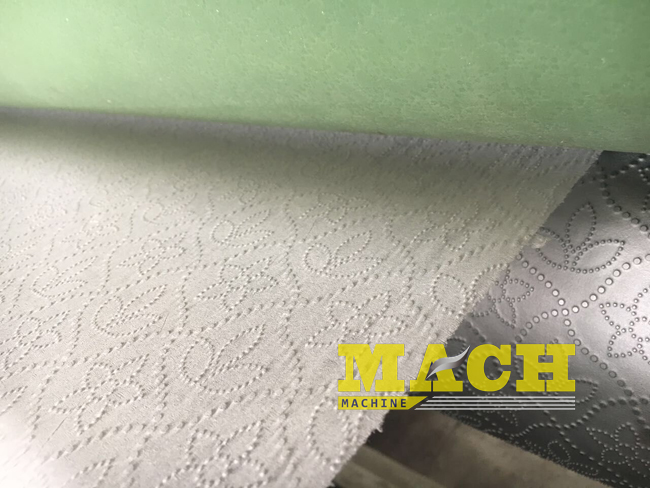

| Embossing unit | One set steel to rubber, or double set embossment can be ordered. | ||||||
| Dimensions | 5.5x2.6x1.7 (length x width x height);(m) | ||||||
| Weight | 2T | ||||||
| Model | 1092A | 1575A | 1760A | \ | 2200A | 2500A | 2800A |
| Jumbo Roll Max. width | 1350 | 1750 | 1880 | \ | 2150 | 2400 | 2700 |
| Jumbo Roll Max. diameter | Standard φ1100mm unless otherwise specified | ||||||
| Quantity of Standings | 1-3 stands (please specify when order) | ||||||
| Jumbo Roll Inner core | Standardφ3”(76.2mm) unless otherwise specified | ||||||
| Counter | Sheets counter | ||||||
| Working speed | 100-150 meters/min ( around 10,000--14,000 rolls / 8 hours ) | ||||||
| Finished Log Outer Core | φ90-135mm | ||||||
| Finished Log Inner Core | φ25-50m | ||||||
| Mechanical driving | Driving by chains | ||||||
| Air -system | 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user) | ||||||
| Main driving | electromagnetism speed regulation 3KW 380V,50HZ | ||||||
| Embossing unit | One set steel to rubber, or double set embossment can be ordered. | ||||||
| Dimensions | 5.5x2.6x1.7 (length x width x height);(m) | ||||||
| Weight | 2T | ||||||
