New Type High Speed Facial Tissue Production Line

New Type High Speed Facial Tissue Production Line

Type: High Speed

Function: Folding,Cutting, Embossing, Edge-line Embossing

Products: V Fold Facial Tissue Paper
Quantity:
Inquire Add to Basket

  • FT-6-10

  • MACH

  • 8477.8090

  • 210mm*(6 Lanes-10 Lanes)

  • 1100mm

  • 2

  • PLC

  • 120-180m/min

  • 170-210 x130-210mm

  • 85-105 x 65-105mm V fold

  • Roots vacuum pump

  • Pneumatic dot slitting

  • Alternate stack by stack

New Type High Speed  Facial Tissue Making Machine

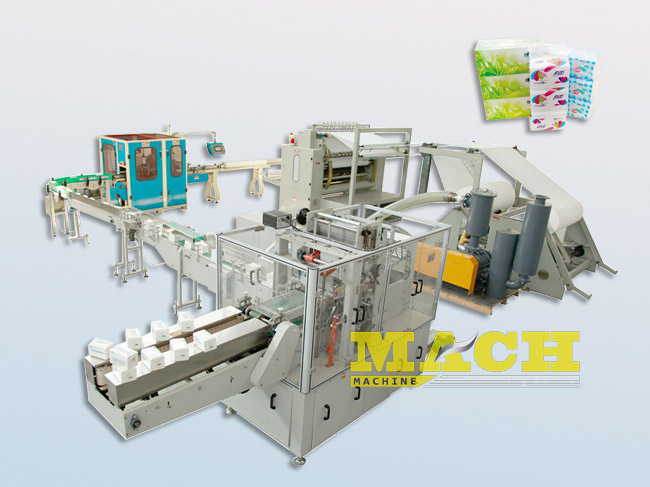

High-Speed-Facial-Tissue-Paper-Production-Line

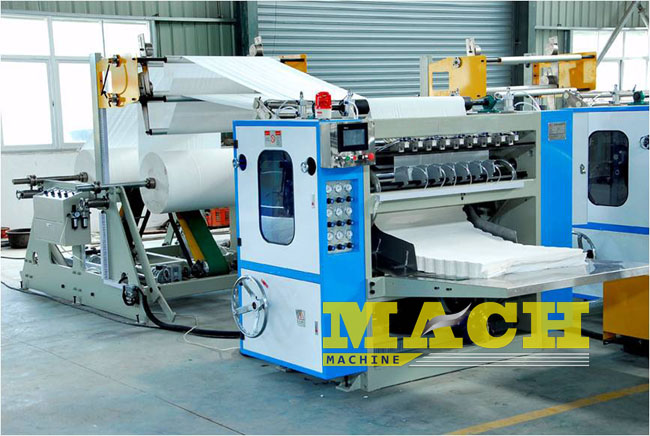

CE Certificated Automatic BoxBag Drawing Type Facial Tissue Paper Making Machine (2)

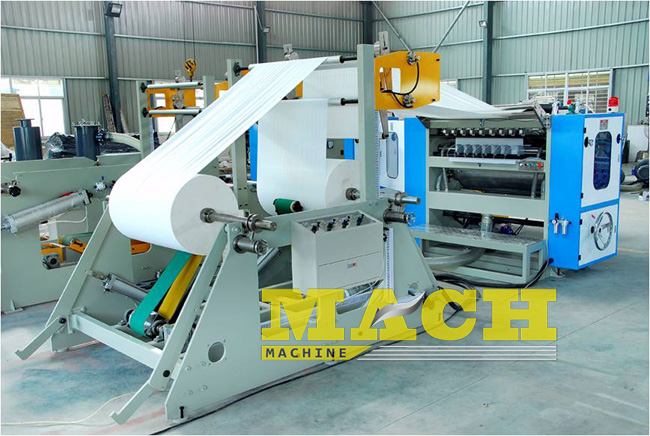

back side

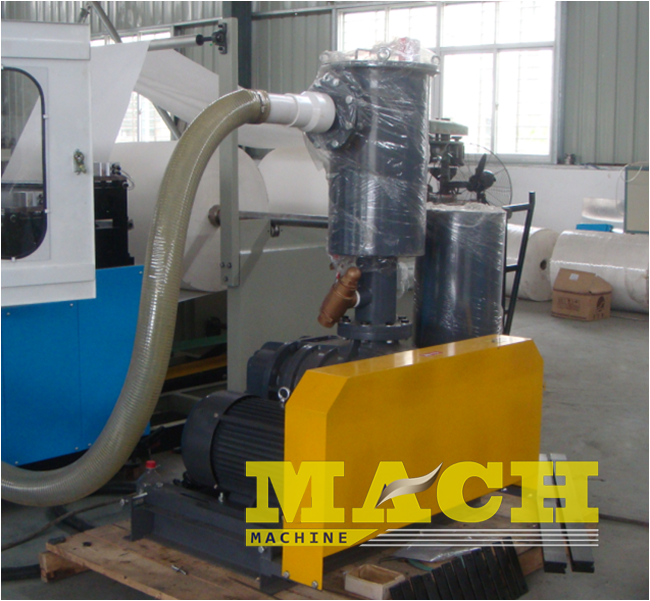

Roots Vacuum Pump
roots vacuum pump

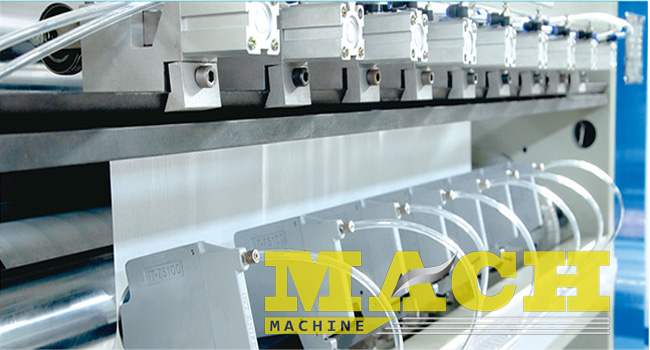

Cutting System
未标题-1

Outputting

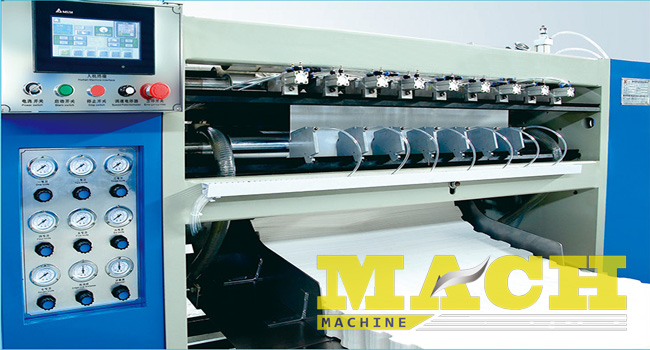

未标题-2




Functions and Features

 This New Type High Speed  Facial Tissue Making Machine is used to convert facial tissue paper with high efficiency!

 The mainframe of this New Type High Speed  Facial Tissue Making Machine is made from wallboard steel; make sure it’s stable and steady when the machine is running with high speed.

New Type High Speed  Facial Tissue Making Machine adopts the advanced magic eye detecting system, PLC controlling and frequency speed controlling.

 Embossment Rolls: You can choose the favorite pattern,

 Other features of the New Type High Speed  Facial Tissue Making Machine: the synchronous feeding with wide belt, tension controlled by the speed regulation hand wheel, auto-counting function, neat folding result for the products and high production efficiency.



Main Specification

Machine Model 6 Lanes 8 Lanes  9 Lane 10 Lanes
Finished Products Unfolded Size (mm) 200×200(Other sizes are available)
Raw Material Diameter (mm) Φ1100(Other sizes are available )
Raw Material Core Diameter (mm) 76.2mm(Other sizes are available)
Stable Speed 120-180m/min
Programmable controller PLC Programmable Controller
Embossing Unit Steel to rubber , steel to steel
Bottom Embossing Roller Felt roller, Paper roller, Rubber roller, steel roller
Edge Embossing Steel to steel, independent adjustment
Automatic Jumbo roll guiding system Optional
Slitting unit Pneumatic dot slitting
Lubricating system Automatic key parts regular lubricating
Driving system Timing belt driving system
Counting system Alternate stack by stack
Main Motor Power Frequency conversion speed regulator, 5.5-11 kw
Vacuum suction unit 11-32KW
Pneumatic System 3 HP air compressor, mini pressure 5kg/cm2Pa(Provided by client)
Dimension(L×W×H) (mm) 6370x(1780-2080)x2130 depends on each model
Weight 6500-8500kg
Vacuum suction unit Roots vacuum pump
Programmable controller Delta Programmable Controller (PLC),LCD screen operation panel
Power Frequency conversion speed
regulator, Electromagnetic speed-regulation motor
Driving system Timing belt, chain
Optional:
Embossing Unit Steel to rubber(by default) , steel to steel, Steel to Wool
Bottom Embossing Roller Felt roller, Paper roller, Rubber roller, steel roller
Slitting unit Pneumatic dot slitting
Edge Embossing Steel to steel, independent adjustment
Automatic Jumbo roll guiding system Optional
Lamination Unit can be order
Color Printing Unit Can be ordered
