N Fold Type Automatic Hand Tissue Paper Towel Making Machine

N Fold Type Automatic Hand Tissue Paper Towel Making Machine

Function: Convert Jumbo Roll to finished facial tissue;folding,embossing,color printing,cutting
Dimensions:
6x2.4x2 (length x width x height);(m)
Weight:
5 Ton
Quantity:
Inquire Add to Basket

  • MACH

  • 8477.8090

  • 210mm*(2 Lanes-8 Lanes)

  • 1100mm

  • 2

  • PLC

  • 70-110m/min/Lane 48,000sheets/hour/lane

  • 170-210 x130-210mm

  • 85-105 x 65-105mm V fold

  • Driving by Step less gear box

  • Electronic counting

  • Two sets steel to rubber embossing

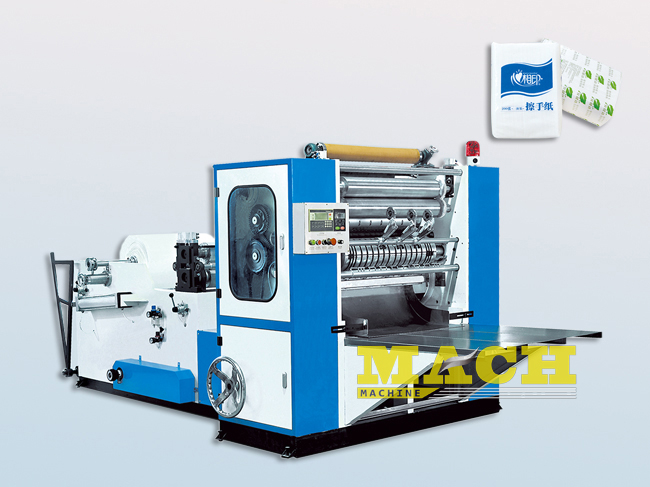

N Fold Type Automatic Hand Tissue Paper Towel Making Machine


N-Fold-Hnad-Towel-Making-Machine



Functions and Features

Production speed: 45,000 sheets/hour/lane;

Steel to steel embossing, pneumatic compression;

Adopt roots vacuum adsorption of new technology;

Automatic pneumatic broken paper separation, convenient to wear paper;

Use synchronous belt transmission, the transmission ratio exact, low noise;

Paper adapt range, 13-16g/m2 for the facial tissue paper,33-45g/m2 (single ply);



Main Specification
Max.jumbo roll width 920mm(4Lanes)
Max.jumbo roll diameter Standard φ1100mm unless otherwise specified
Qty of unwind stand 1 standing
Jumbo roll core’s inner diameter   Standardφ3”(76.2mm) unless otherwise specified
Data setting HMI
Programming controller PLC
Operate speed 60-160m/min,   45,000 sheets/hour/lane
Expand size Φ240*240mm
Folding size Φ80*240mm  Z- folding
Power 5.5kw 380V 50HZ 3P
Mechanical driving Driving by Step less gear box
Transmission  by belt and chain
Vacuum fan Roots Vacuum System(4-6 lanes),22kw 380V 50HZ 3P
Counting electronic counting
Embossing unit One set: Steel to steel embossing rollers
Dimensions 6x2.4x2 (length x width x height);(m)
Weight 3T
