| Quantity: | |
|---|---|
1575B
MACH
8441.8090
Rewinding Machine; Log Stacker; Band Saw
1750mm
4 Blades ( 115mm-230mm )
φ80-φ140mm
180meter/min
PLC (Delta)
380V, 50Hz, 3 Phase
1500mm-2700mm(need to be ordered)
Variable, can be set in the PLC, servo control
180 cuts/min, 2 rolls/cut

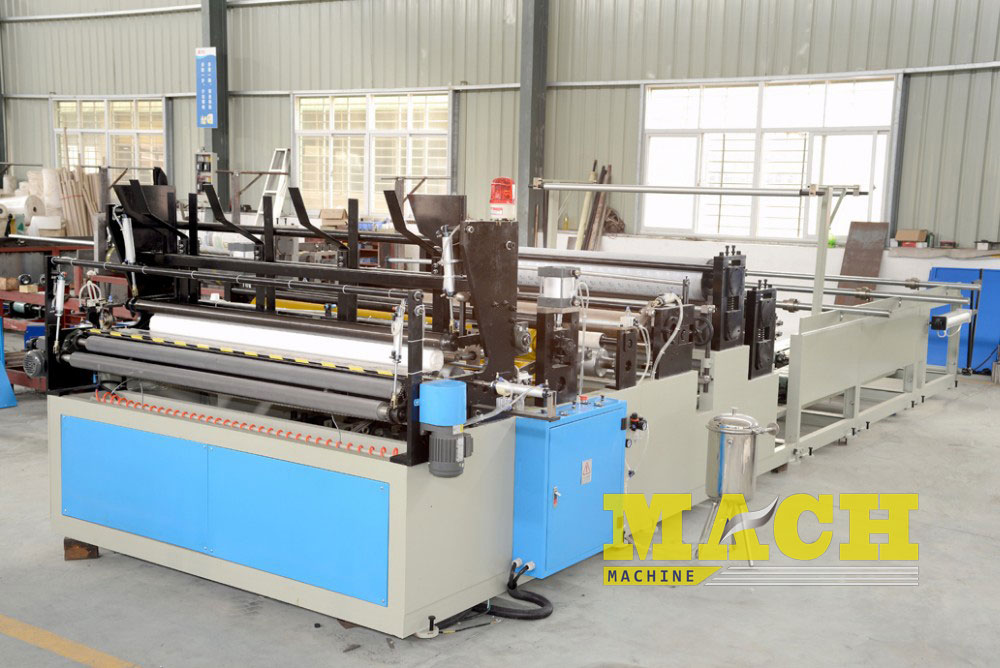

| Model | 1092B | 1575B | 1760B | 2200B | 2500B | 2800B |
| Max.Jumbo Roll Width | 1350 | 1750 | 1900 | 2150 | 2400 | 2700 |
| Max.Jumbo Roll diameter | Standard φ1100mm unless otherwise specified | |||||
| Jumbo Roll Standings | 3 stands (pls specify when order) Paper gram weight 13-16 g/m2, lifted by Pneumatic loading | |||||
| Jumbo Roll Inner Diameter | Standardφ3”(76.2mm) unless otherwise specified | |||||
| Data setting | HMI | |||||
| Programming controller | PLC, touch screen | |||||
| Operate Speed | 0-200m/min 23000-38000 rolls/8hours | |||||
| Finished Log Outer diameter | φ90-140mm | |||||
| Finished Log Inner diameter | φ25-50m | |||||
| Diameter of finished log control | By Electronic/Air control | |||||
| Mechanical driving | Driving by Stepless gear box | |||||
| Air -system | 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user) | |||||
| Main driving | Frequency conversion speed regulation 9KW 380V,50HZ | |||||
| Embossing unit | Two sets steel to rubber | |||||
| Dimensions | 6x3x1.7 (length x width x height);(m) | |||||
| Weight | 3T-4T(depends on the Model you have ) | |||||
| Options: | ||||||
| Embossment Roller | Plane, Single Set, Double Sets Can be ordered | |||||
| Color Printing Unit | 1-2Colors can be order | |||||
| Lamination Unit | Can be Ordered | |||||
| Edge-Embossing Line | Steel to Steel Operate by Pneumatic can be ordered | |||||

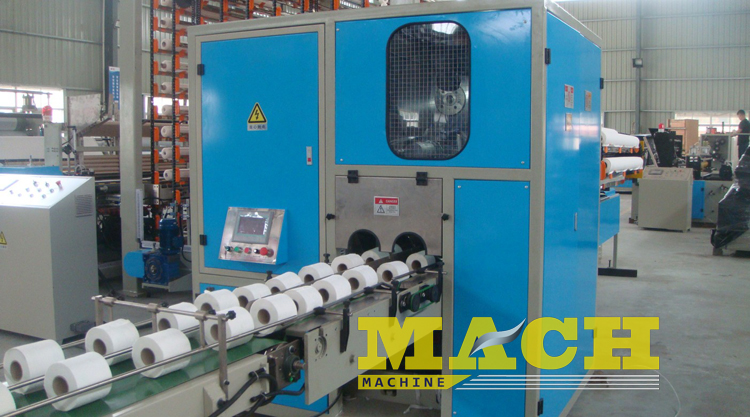

| Log length | 1500mm-2700mm(need to be ordered) |
| Log outer diameter | 90mm-150mm (standard size:110±5mm),need to be ordered |
| Cutting length | Variable, can be set in the PLC, servo control |
| Machine Max Speed | 180 cuts/min, 2 rolls/cut |
| Operation speed | 150 cuts/min, 2 rolls/cut |
| Blade Outer Diameter | 610mm |
| Blade Grinding and Lubrication | Automatic, and rate can be set on PLC |
| Circle Round Blade | Controlled by variable frequency speed regulation |
| Log Pushing In | Driven by Servo Motor |
| Clamp | Changeable(2 Sets goes with the machine) ,finished roller diameter need to be ordered |
| Control System | PLC ,Touch Screen(Brand :Delta) |
| Installed power(9Kw) | Alternating Current: 5 Horses per Machine |
| Frequency Conversion: 5 Horses per Machine | |
| Alternating Current: 1/2 Horses per Machine, AC motor 5 Horses | |
| Dimension | 5730*1720*1920mm(1*20’ Container) |
| Weight | 3.5T |

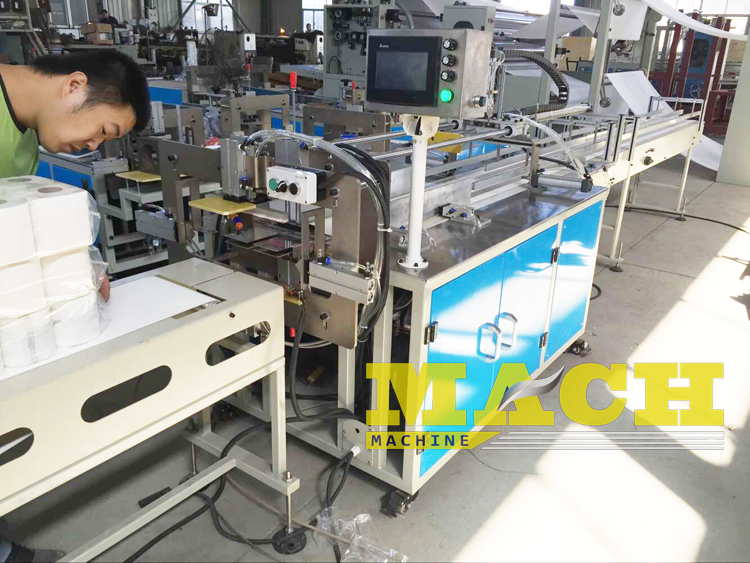

| Power | 380V 50HZ |
| Main circuit power | 0.74KW |
| Sealing Sealing transformer power | 0.45KW |
| Total Power | 1.19KW |
| Pressure | 0.4 --- 0.5MPA |
| Machine size | 6.5X1.2X1.2M |
