Automatic Toilet Tissue Paper Rolls Slitting Mcahine Log Saw

High Speed Log Saw is one of the important equipment for the automatically continuous production line of toilet rolls and kitchen towels, greatly increasing the production automation and efficiency.
The machine is characteristic of a strong, well built structure and perfect cutting action.
Quantity:
Inquire Add to Basket

  • MACH

  • 84418090

  • Log lengthLog lengthLog length

  • 90mm-150mm (standard size:110±5mm),need to be orde

  • Variable, can be set in the PLC, servo control

  • 180 cuts/min, 2 rolls/cut

  • 150 cuts/min, 2 rolls/cut

  • 610mm

  • Automatic, and rate can be set on PLC

Automatic Toilet Tissue Paper Rolls Slitting Mcahine Log Saw

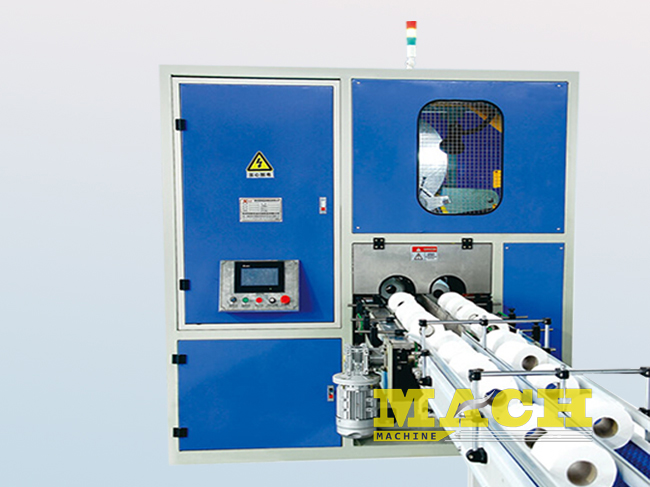

Automatic-High-Speed-Log-Saw


Introduction
High Speed Log Saw is one of the important equipment for the automatically continuous production line of toilet rolls and kitchen towels, greatly increasing the production automation and efficiency.
The machine is characteristic of a strong, well built structure and perfect cutting action.


Function and Feature:

Automatic blade sharpening unit complete with lubrication system.

Log accompaniment system.

Automatic trim eliminating device.

Automatic approach of grinding wheels to cutting blade based on the blade wear.

Two clamping systems for toilet tissue paper rolls and kitchen towels.


Specification

Log length 1500mm-2700mm(need to be ordered)
Log outer diameter 90mm-150mm (standard size:110±5mm),need to be ordered
Cutting length Variable, can be set in the PLC, servo control
Machine Max Speed 180 cuts/min, 2 rolls/cut
Operation speed 150 cuts/min, 2 rolls/cut
Blade Outer Diameter 610mm
Blade Grinding and Lubrication Automatic, and rate can be set on PLC
Circle Round Blade Controlled by variable frequency speed regulation
Log Pushing In Driven by Servo Motor
Clamp Changeable(2 Sets goes with the machine) ,finished roller diameter need to be ordered
Control System PLC ,Touch Screen(Brand :Delta)
Installed power(9Kw) Alternating Current: 5 Horses per Machine
Frequency Conversion: 5 Horses per Machine
Alternating Current: 1/2 Horses per Machine, AC motor 5 Horses
Dimension 5730*1720*1920mm(1*20’ Container)
Weight 3.5T
