Automatic Toilet Tissue Paper Rolls Cutting Mcahine Band Saw

The Automatic Toilet Tissue Paper Rolls Cutting Mcahine Band Saw is a important part of our toilet paper production line.
The band saw is able to cut the long toilet roll into small toilet rolls automatically.
Quantity:
Inquire Add to Basket

  • MACH

  • 8441.8090

  • 1350-2500mm

  • 90mm-150mm (standard size:110±5mm),need to be orde

  • Variable, can be set in the PLC, servo control

  • 60 cuts/min

  • 50 cuts/min

  • Pneumatic Type ,interval time is adjustable

  • 3900*80*1（mm）

  • PLC(Delta)

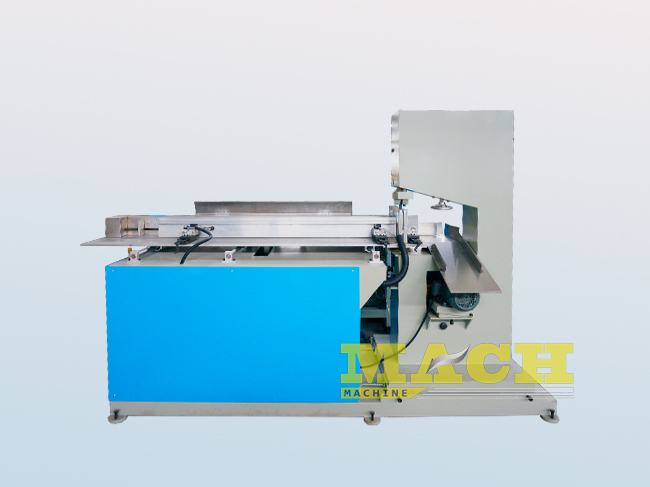

Automatic Toilet Tissue Paper Rolls Cutting Mcahine Band Saw

Automatic-Band-Saw


Introduction
High Speed Tissue Paper Log Saw is one of the important equipment for the automatically continuous production line of toilet rolls and kitchen towels, greatly increasing the production automation and efficiency.
The machine is characteristic of a strong, well built structure and perfect cutting action.


Function and Feature:

  It used for cutting the toilet tissue roll paper, it can load rewinding roll length is between 1.2m-1.8m.It’s auto-loading and auto-rejection. And this machine can be connect onto the packing machine

Adopting with LCD touch screen,Evaluator,so it can be set easily.

Cutting progress is safe and without manual operation which will increase the safety factor.

This machine can cut according to the configuration which has been set. The cutting speed is about 80-120rolls/min.The finished roll is lint-free,upright.It help you to save labor and reduce the cost, as well as help you to save space, all in all, it can help you to improve production efficiency.


Specification

Model: GS-1575B
Jumbo Roll Max. Width 1750mm
Jumbo Roll Diameter φ80-φ115
Design Speed 60 rolls/minute
Stable Speed 40-50 rolls/minute
Grinding System Pneumatic Sharpen, grinding time can be set
Driving System Delta Servo Motor
Power 2.2kw
Dimension 3800x2500x2000mm
Blade Size 3900x80x1mm
Weight 1.5T
Voltage & Frequency 380V, 50Hz
