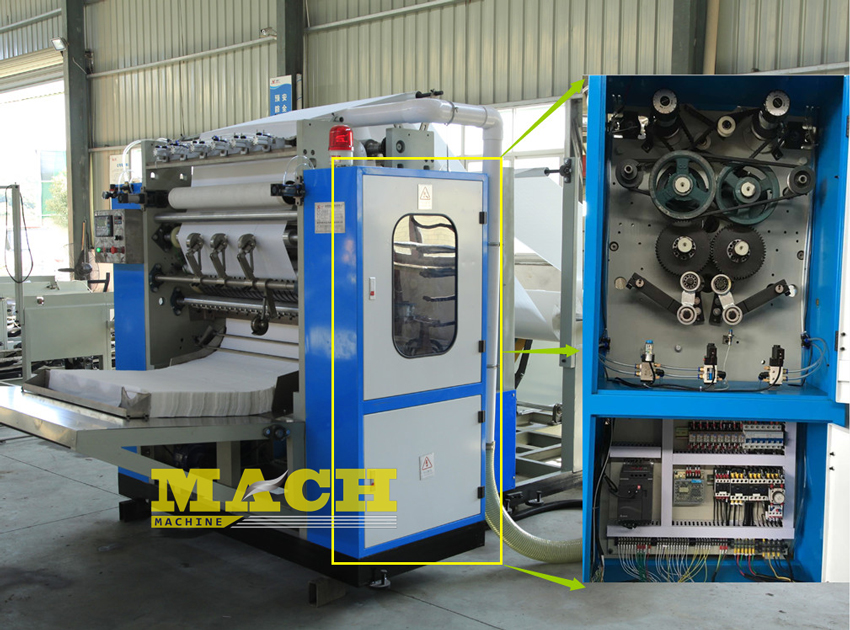

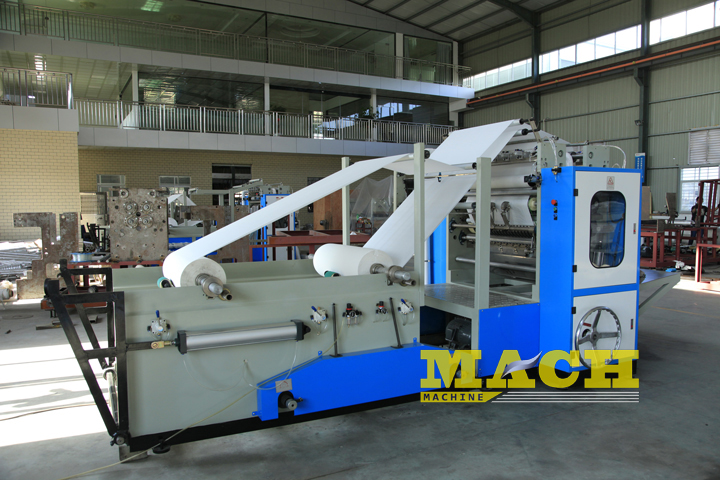

Automatic Facial Tissue Paper Making Machine

Automatic High Speed Facial Tissue Paper Making Machine

Function: Convert Jumbo Roll to finished facial tissue;folding,embossing,color printing,cutting
Availability:
Quantity:
Inquire Add to Basket

  • 2-6 lanes

  • MACH

  • 8477.8090

Automatic Facial Tissue Paper Making Machine


Automatic Facial Tissue Paper Making Machine

Automatic Facial Tissue Paper Making Machine

Automatic Facial Tissue Paper Making Machine

Automatic Facial Tissue Paper Making Machine


Functions and Features

Automatic counting sub-bit row of output;

Screw shear knives, vacuum folding;

Variable speed unwinding, can be adapted to base level of tension;

Controlled by PLC computer programming, pneumatic, on paper, easy to operate;

Frequency conversion motor to save energy;

Product width can be adjusted to facilitate marketing;

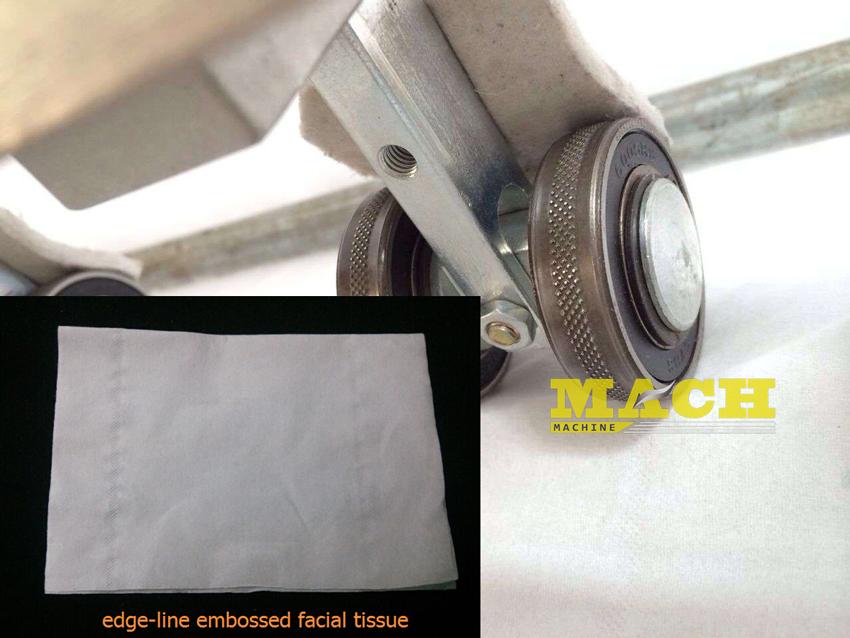

Supporting paper, paper pattern edge rolling device, the pattern is clear, flexible and market demand. (Pattern selected by the guests)

235034-140FR13A271-副本
Max.jumbo roll width 200mm*(2Lanes-8Lanes)
Max.jumbo roll diameter Standard φ1100mm unless otherwise specified
Qty of unwind stand 2 stands
Jumbo roll core’s inner diameter   Standardφ3”(76.2mm) unless otherwise specified
Data setting HMI
Programming controller PLC
Operate speed 70-110m/min/Lane     48,000sheets/hour/lane
Expand size Φ170x130-210mm
Folding size Φ85x130-210mm  V fold
Power 5.5kw 380V 50HZ 3P
Mechanical driving Driving by Step less gear box
Transmission  by belt and chain
Vacuum fan 18.5kw 380V 50HZ 3P
Counting Electronic counting
Embossing unit Two sets steel to rubber embossing
Dimensions 6x2.4x2 (length x width x height);(m)
Weight 2-5 T
