DXD-ZB-IV
MACH
8441.8090
Functions and Features

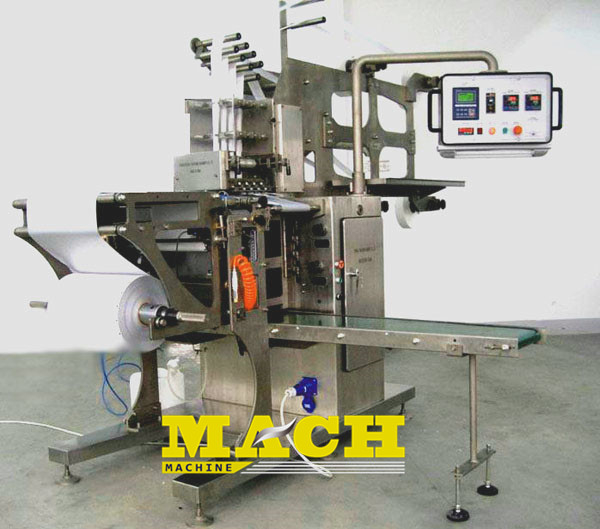

Four Lanes Alcohol Cotton Swab Prep Pad Making and Packing Machine is suitable to be used for manufacturing alcohol swab, alcohol prep pad, Nail cleaning wipes,etc.
Four Lanes Alcohol Cotton Swab Prep Pad Making and Packing Machine incorporates a cross deviation correction device with two degrees of freedom and an intelligent longitudinal photoelectric trademark positioning system.
Continuous trademark mode and fixed trademark mode can be switched at will for the Four Lanes Alcohol Cotton Swab Making and Packing Machine.
It has the functions of folding and cutting alcohol pad,wet wipes in the chute, forming, dropping, cutting, Liquid filling, date heat embossing and counting (with count preset), end sealing, etc.
The packed bags are four sides sealing, which are even and perfect.
Four Lanes Alcohol Cotton Swab Prep Pad Making and Packing Machine combine the functions of Folding & Packing into one machine.
Main Specification
| Size of Non-woven | 30x60mm |
| or 40x80mm before fold, Single fold | |
| Size of bag | 50x50mm ( or 60x60mm ) |
| Capacity | 600-800 bags/minute |
| depends on tissue size and bag size | |
| Alcohol Quantity | 0.5-1ml can be injected into swab before sealing the packing bag |
| Control System | PLC control |
| Power | 4.0kw; 220V, 50Hz, Single Phase. |
| Weight | 1100 Kgs |
| Size of machine | 1800x1200x1850mm |
| Standard Configuration | Stainless Steel Body Pre-set Counter Packing Film Position Correction Unit Packing Film Strength Control Unit Four Sets of Constant Tension System for four roll of cotton |
We can also supply Inner Material and Outer Packing Material with Alcohol Swab Packing Machine
1) Inner Material
Non-Woven Fabricant
70% Viscose + 30% PET Size: 40-50 g/m2
Tissue Roll: Max. Width < 65mm; Max. Diameter < 500mm
2) Outer Packing Material
Structure: Paper 30/ PE 10 / Aluminum 18/ Surlyn 16
Thickness: 70u
Size: 74 +/- 2g/m2
Diameter: < 300mm
Heating Temperature: 175-180C
We can make Printing Design according to Printing Pattern which provided by end-user.
Please add my Whatsapp: 0086-186-4095-8988 so that I send Video of this Alcohol Swab Making machine to you by Whatsapp. Thanks.
