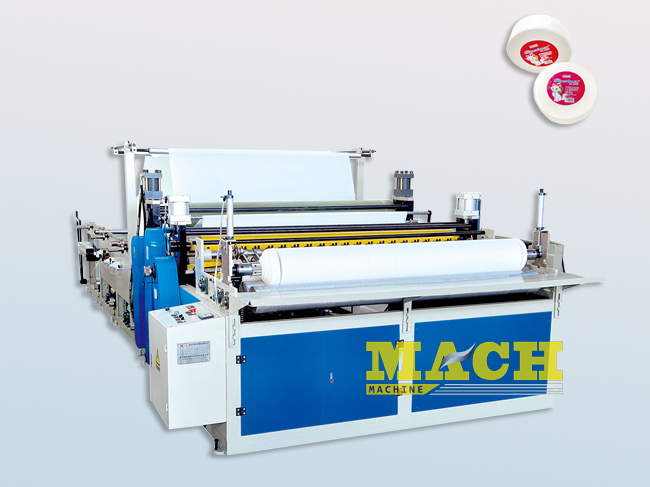

Office Small Size Jumbo Toilet Tissue Paper Roll Slitting and Rewinding Machine
1. Winding by air shaft.
2. Pneumatic loading of jumbo paper, it’s labor-saving
3. Cutter body rigidity, running fast, no noise, no vibration.
4. Unwind stand: jumbo roll is pneumatic unwinding, with manually paper tension adjusting unit and lateral adjusting unit for each jumbo roll.
5. Edge-embossing unit: Individual pneumatic-controlled embosser bearing, with high-hardness bottom roller.
6. Automatic tail-trimming and sealing unit: the trimming, gluing and sealing can be synchronized done.
| Quantity: | |
|---|---|
| Model | 1575 | ||||
| Max.Width of Jumbo Roll | 1750mm | ||||
| Max.Dia. of Jumbo Roll | Standard φ1100mm unless otherwise specified | ||||
| Qty of unwind stand | 3 stands | ||||
| Inner Dia.of Jumbo Roll | Standardφ3”(76.2mm) unless otherwise specified | ||||
| Rewinding shaft | Air shaft | ||||
| Machine speed | 0-200m/min. | ||||
| Operate speed | 0-180m/min. | ||||
| Outer Dia.of Finished Roll | φ90-400mm | ||||
| Inner dia.of Finished Roll | Standardφ3”(76.2mm) unless otherwise specified | ||||
| Perforating Distance | 4 pcs anvil blades on the shaft ,perforating size 108±2mm (other size can be ordered) | ||||
| Main driving | Speed controlled by inverter , main motor 4-22KW | ||||
| Optional Parts | |||||
| Embossing Rolls | Steel to Rubber Embossment Single, Double | ||||
| Steel to Rubber Embossment, Pneumatic-embossing | |||||
| Edge-lines Embossing | Individual pneumatic type | ||||
| Automatic tail-trimming | Tail-trimming and sealing unit: the trimming, | ||||
| and sealing unit | Gluing and Sealing can be synchronized done. | ||||
