High Speed Double Lanes Automatic Paper Napkin Making Machine

High Speed Double Lanes Automatic Paper Napkin Making Machine

Type: High Speed; Wallboard Structure

Functions: Embossing, Folding, Cutting.

Capacity: 800-1000 pieces / min

Quantity:
  • NT-500
  • MACh
  • 8441.8090
  • New
  • PLC
  • Paper Folding and Cutting Machine
  • 800-1000 pieces / min
  • 380V, 50Hz, 3 Phases or 220V, 60Hz, 3 Phases
  • 5500*1600*1800mm
  • 5500kg
  • CE
  • one year after receiving our machine
  • Steel Roll / Wool Roll
High Speed Double Lanes Automatic Paper Napkin Making Machine

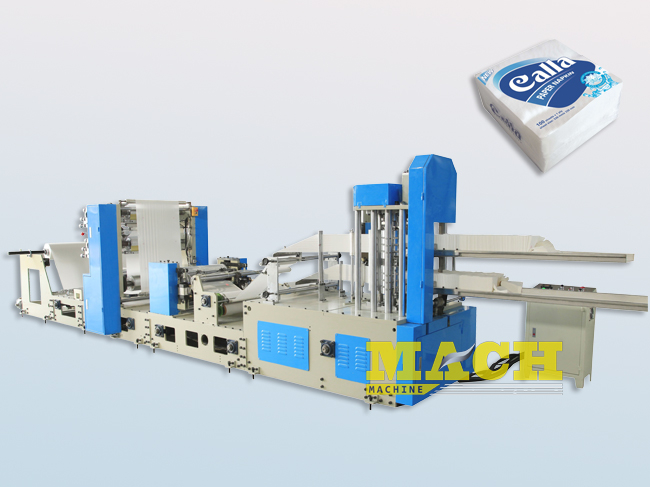

Two Lanes High Speed Paper Napkin Making Machine

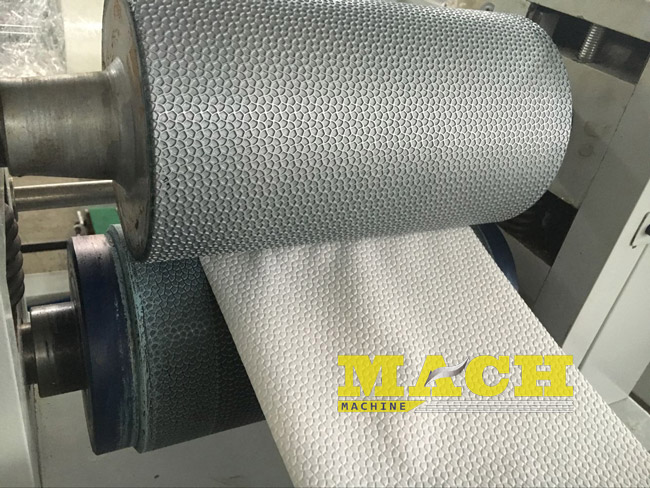

Embossing Unit (embossing depth:1mm)
High Speed Paper Napkin Making Machine

Embossed Paper Napkin
High Speed Paper Napkin Making Machine

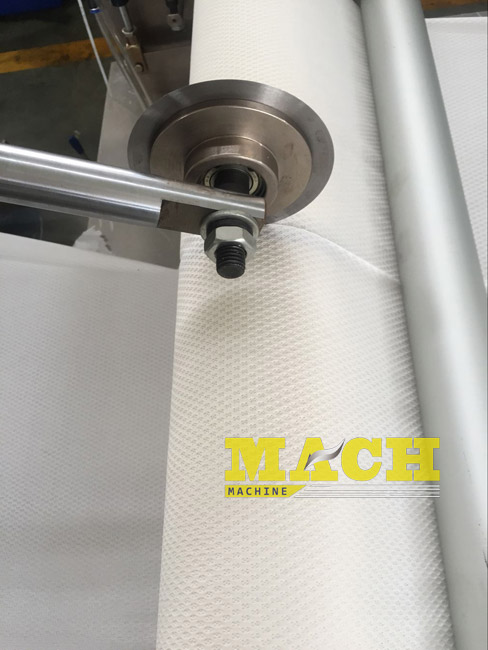

Circle Cutter

High Speed Paper Napkin Making Machine

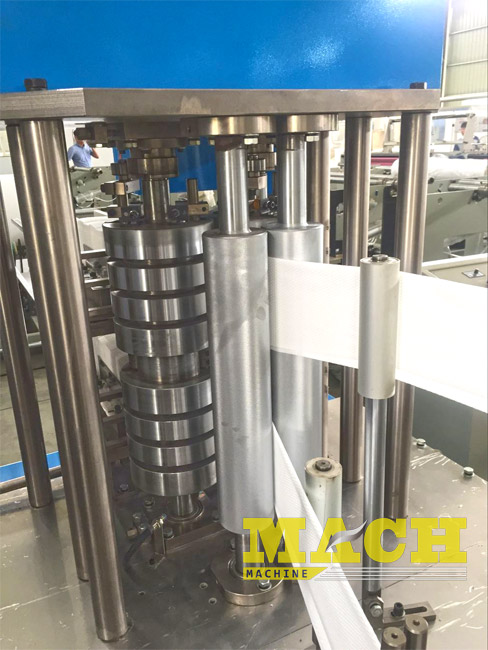

Folding Unit
High Speed Paper Napkin Making Machine

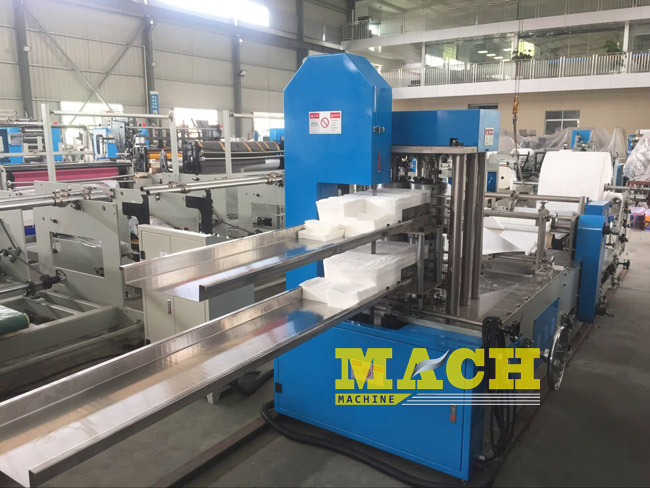

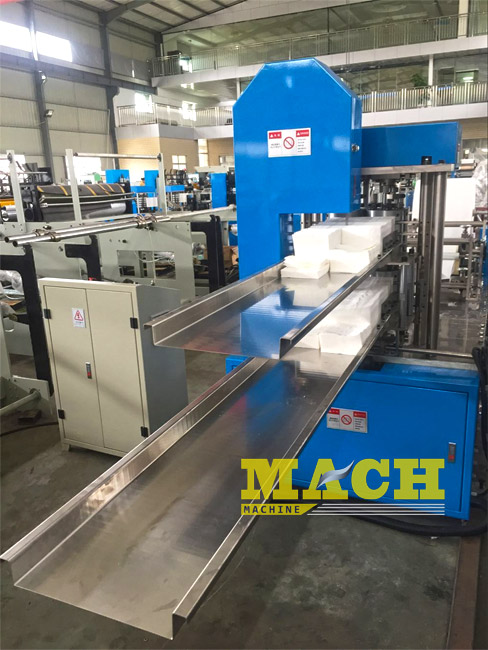

Output Plate
High Speed Paper Napkin Making Machine


Functions and Features

 This machine is used for cutting jumbo roll paper, emboss on the paper, and then napkin automatically counted and come out by folding.

 Various embossment patterns can be decided by customers.

 1~2 color printing can be equipped as per customers' choice.

 Stepless adjustment is adopted to unwind the jumbo roll. The whole machine works synchronously, which can be speeded up immediately and have high efficiency.

 As per request, auto counting and outputting in alignment can be materialized.


Bearing, electric components and synchronous belt are famous brands.




Main Specification

Item Details
Finished Paper Open Size 330 X330,300 X300mm
Folding Way 1/4 Fold
Jumbo Roll Size Width≤330mmNapkin size X 2=660mm
Out Diameter≤1200mm
Inner core: 3” (76.2mm) other size to be ordered
Paper GSM 13-15g/m2/2 ply,18-22g/1 ply
Paper Tension  Automatic Adjust
Production Speed  800-1000 pieces /min
Controlled by  Frequency regulation device
Embossment  Steel to wool ,steel to steel can be order,
Pattern can be decided by customers
Color Print 1-2 colors print can be ordered
Counting Automatic count ,can be set by menu
Voltage 380V,50Hz
Power Main Motor 5.5KW +  Band Saw 1.5KW = 7kw
Air Pressure No less than 0.5MPAcustomer prepare
We suggest that you can use 7.5kw
Air Pressure
Machine Size 5500*1600*1800mm
Weight About 5.5tons
