High Speed Automatic Facila Tissue and Paper Napkin Packing Machine

High Speed Automatic Facila Tissue Paper and Napkin Paper Packing Machine

Functions: Tissue Paper Packing and Sealing

Capacity: 85 pack/min

Quantity:
  • MACH
  • 8441.8090
  • New
  • PLC
  • Tissue Paper Packing and Sealing
  • 85 packs/min
  • (100-210mm) x (90 mm-115 mm) x (25 mm-100mm)
  • 4600mmx3600mmx1770 mm
  • doulbe surfice CPP film、CPE compound film
  • ≤ 3500 KG
  • CE
  • 0.035mm-0.05mm
High Speed Automatic Facila Tissue Paper and Paper Napkin Packing Machine

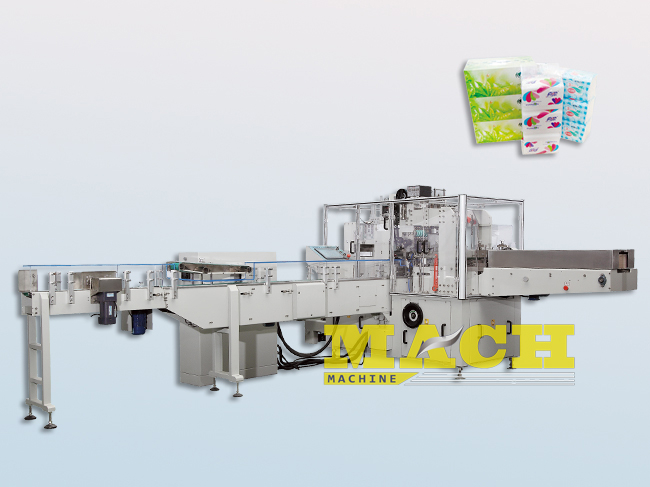

High-Speed-Facial-Tissue-and-Paper-Napkin-Packing-Machine




Functions and Features

Material arrangement feeding is adopted frequency control type, film punching the hole, positioning the stretch film, cutting film, paper feeding bag, middle transition and other action are adopted servo driving control method, which has full deploy of turning function.

Deploying 10 exclusive function: tissue shaping, avoiding bags blocking and feeding, electric clicking correction, knife repeat using,adjust speed in running.

Stable speed of High Speed Automatic Facila Tissue and Paper Napkin Packing Machine: 80 packs/min

High efficiency, simple operating,wide range of size application, change the size quickly,convenient maintenance, low cost and other advantage.

Protection of tissue exceed error of length, exceed error of width, magnetic clutch of feeding, belt of  high temperature resistance and the function of end sealing with multi-section running.




Main Specification

Basic Feature Description Remark
Product packed range Film packing the single facial tissue, napkin tissue , hand towel and travel pack tissue
Mode of conveyor treatment. ASF Mode full auto intelligent feeding conveyor 5 section intelligent soft feeding
Designed production speed 85 packs/min relevant to packing size
Length scope of tissue 100 mm-  210 mm Beyond this size, customized
Height scope of tissue 25 mm- 100 mm
Width scope of tissue  90 mm- 115 mm
Equipment size 4600mmx3600mmx1770 mm
Weigtht ≤ 3500 KG
packing material doulbe surfice CPP film、CPE compound film Dull polish film also suitable
thickness of film 0.035mm-0.05mm
Max. Dia. Of film 500mm
core diameter. Of film 76mm follow international common standard
Max. Width of film 340mm
Air compressure power supply pressuer≥ 0.5MPA Air compressure provide by buyer
Power of cabinet 380V/50HZ follow china power standard
Total power   10.58 KW Total power of maid motor, servo motor, speed motor
Suitable voltage +/-10% follow national power standard
I/O input 24VDC eletrical contro system control return circuit input
I/O output 24VDC Eletrical contro system control return circuit output
Equipment movement control mode 3 shaft servo positioning control The electronic CAM motion curve
Color and process international gray, elestric static plainting process. International color no.RAL7032
Packing Type 3D packing Joint mouth, two sides sealing flat and neat
