Fully Automatic Toilet Tissue Paper & Kitchen Towel Production Line

Fully Automatic Toilet Tissue Paper & Kitchen Towel Production Line
1. Fully Automatic Rewinding & Embossing Toilet Paper Machine
2. Automatic Log Stacker
3. Automatic Band Saw Machine
Quantity:
Inquire Add to Basket

  • 1575B
  • MACH
  • 8441.8090
  • Rewinding Machine; Log Stacker; Band Saw
  • 1750mm
  • 4 Blades ( 115mm-230mm )
  • φ80-φ140mm
  • 180meter/min
  • PLC (Delta)
  • 380V, 50Hz, 3 Phase
  • 40-50 rolls/minute
  • Pneumatic Sharpen, grinding time can be set
Fully Automatic Toilet Tissue Paper & Kitchen Towel Production Line


Fully Automatic Toilet Tissue & Kitchen Towel Production Line

Rewinding Machine
Fully Automatic Toilet Tissue & Kitchen Towel Production Line

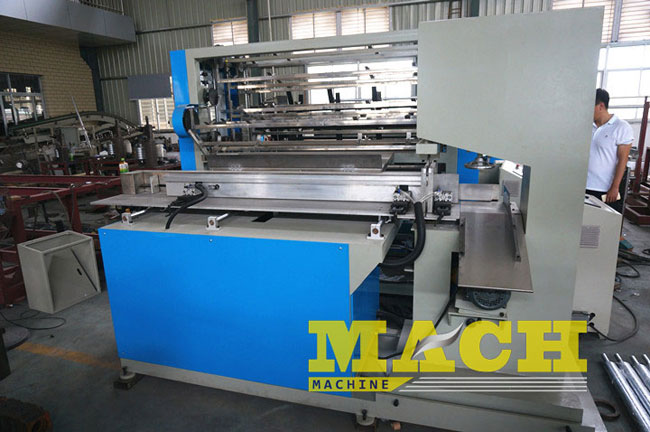

Automatic Log Stacker & Automatic Band Saw
Fully Automatic Toilet Tissue & Kitchen Towel Production Line



Introduction

This production line consists of the following THREE parts:

1.  Fully Automatic Rewinding & Embossing Toilet Paper Machine
2.  Automatic Log Stacker
3.  Automatic Band Saw Machine

It converts the jumbo roll into small toilet rollers. The whole line work smoothly and run stable, saving the labor cost. It’s best choice for the producing toilet rollers.


Features:

This machine can manufacture toilet rolls with core and without core according to your specific requirement.

With Log Stacker, This line can manufacture toilet rolls continuously and non-stop. It will increase production efficiency.

With Automatic Band Saw Machine, It can cut log toilet rolls into small toilet rolls automatically.

With Automatic Toilet Core Making Machine, It can produce plastic, paper toilet paper core and cut off.

With Distributor and Conveyer Belt, This line can transfer the finished small toilet rolls to packing machine automatically.

With Automatic Multi Toilet Tissue Rolls Wrapping Machine, It can wrapping finished toilet rolls in to plastic bag.



Fully Automatic Rewinding & Embossing Toilet Paper Machine
Model 1575B
Jumbo Roll Max. Width 1750mm
Jumbo Roll Diameter φ1100mm
Jumbo Roll Inner Diameter 76.2mm ( 3 inches ) Other size can be specified
Perforation Distance 4 Blades ( 115mm,230mm ) Other size can be specified
Finished Product Diameter φ80-φ140mm
Finishes Product Core Diameter φ38-φ48mm
Production Speed 180meter/min ( about 30,000 toilet rolls/ 8 hours )
Program Controller PLC (Delta)
Unwind Stands 2 stands ( Need to be specified)
Pneumatic System 0.5-0.8MPa ( Provide by end-user)
Main Power 18kw
Dimension 10000x3000x2000mm (L x W x H)
Weight About 12T
Jumbo Roll Layers 1~3 ply, 14~30gsm toilet rolls
Edge-Line Embossing Steel to steel (Pneumatic control) (can be specified)
Embossment Big diameter rollers, Steel to Rubber,
Double Embossement (can be specified )
Voltage & Frequency 380V, 50Hz, 3 Phase.


Automatic Log Stacker
Model: 1575B
Log Max. Length 1750mm ( Other size can be specified)
Log Diameter φ80-φ115 ( Other size can be specified)
Log Amount 26 logs
Working Mode Cycling
Program Controller PLC ( Delta)
Power 3kw
Dimension 3000x2000x2000mm (LxWxH)
Weight 1.3T
Voltage & Frequency 380V, 50Hz


Automatic Band Saw Machine
Model: GS-1575B
Jumbo Roll Max. Width 1750mm
Jumbo Roll Diameter φ80-φ115
Design Speed 60 rolls/minute
Stable Speed 40-50 rolls/minute
Grinding System Pneumatic Sharpen, grinding time can be set
Driving System Delta Servo Motor
Power 2.2kw
Dimension 3800x2500x2000mm
Blade Size 3900x80x1mm
Weight 1.5T
Voltage & Frequency 380V, 50Hz
Automatic Toilet Paper Making Mahcine Model 1575B
Automatic Toilet Paper Making Mahcine

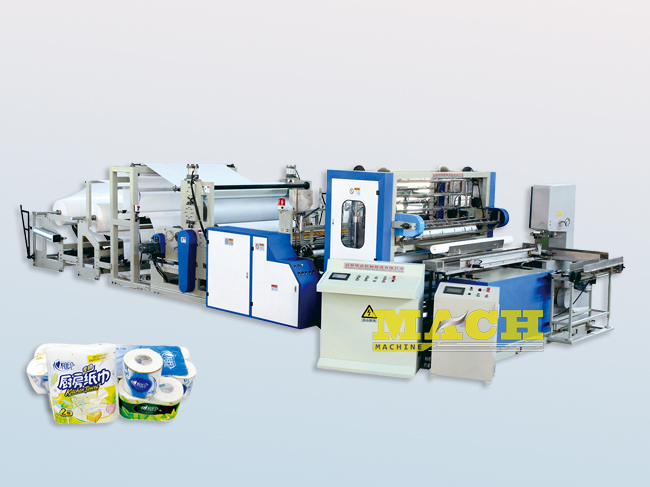

Automatic-Color-Gluing-Kitchen-Towel-Making-Machine
