Automatic Kitchen Towel and Toilet Tissue Paper Making Machine

Functions: Embossing, Perforation, Rewinding, Cutting.

Capacity: 120 meter/min

Width of Jumbo toilet roll: 1750mm

Quantity:
  • 1575B
  • MACH
  • 8441.8090
Automatic Kitchen Paper Towel Toilet Tissue Paper Making Machine







kitchen paper roll making machine

kitchen towel making machine

toilet paper roll making machine



Finished Products: Toilet Paper Roll and Kitchen Paper Towel

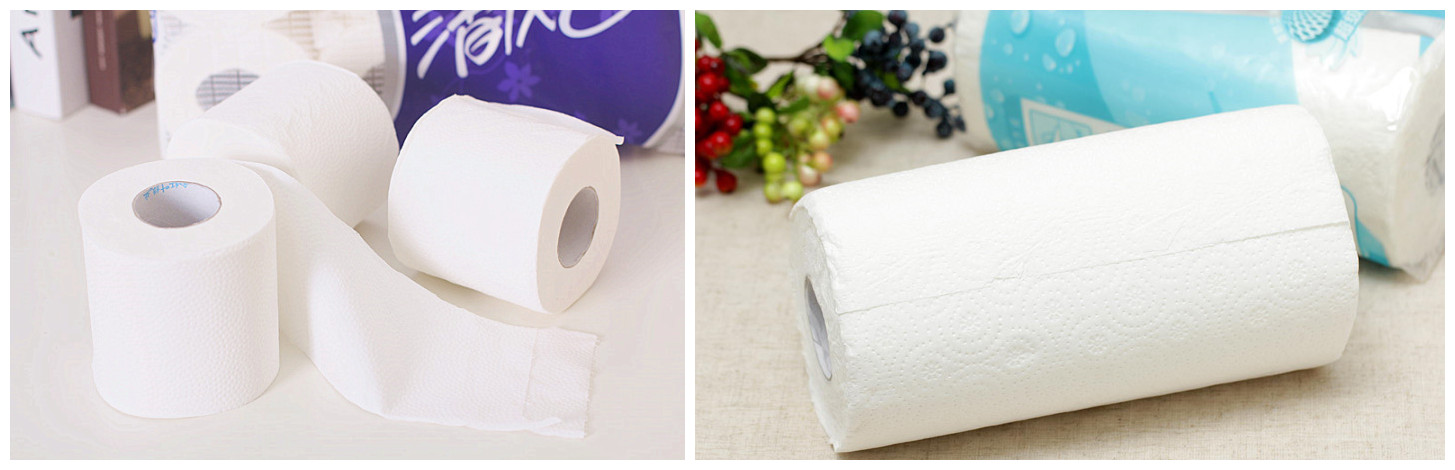

finished toilet paper and kitchen paper rolls





Automatic paper tube replacement device, without artificial wearing paper tube, within 1 minute can easily adjust to any kind of paper tube specifications.


Automatic trimming, sealing synchronization time to complete, finished will left10-18mm tail, to reducing product costs and waste.

Adopt with advanced PLC control, production parameters fault screen display.

Precision spiral soft knife, 3 knife punch, low noise, perforation clearer, great adjustment range gearbox.

Three horizontal paper unwind stander, pneumatic to load paper, wide leather belt pneumatic to feed, each  have its own  paper roll adjusting device.

Embossing device use steel to rubber roller, soft, embossed clear and beautiful.

    With Double Embossment and Lamination  Gluing Unit, you can produce toilet paper and kitchen paper towel by  one machine


Use before and after the jog switch guide paper, the operation easier and safer.

With one set of manual band saw cutting machine. It can sut the long toilet rolls to small toilet rolls.

Color printing device (need order)

 CE Certificate


235034-140FR13A271-副本2

Model

1092B

1575B

1760B

2200B

2500B

2800B

Max.Jumbo  Roll Width

1350

1750

1900

2150

2400

2700

Max.Jumbo  Roll diameter

Standard φ1100mm unless otherwise specified

Jumbo Roll Standings

3 stands (pls specify when order)  Paper gram weight 13-16 g/m2, lifted by Pneumatic loading

Jumbo Roll Inner Diameter

Standardφ3”(76.2mm) unless otherwise specified

Data setting

HMI

Programming controller

PLC, touch screen

Operate Speed

0-200m/min 15000-25000 rolls/8hours

Finished Log Outer diameter

φ90-140mm

Finished Log Inner diameter

φ25-50m

Diameter of finished log control

By Electronic/Air control

Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 9KW 380V,50HZ

Embossing unit

Two sets steel to rubber

Dimensions

6x3x1.7 (length x width x height);(m)

Weight

3T-4T(depends on the Model you have )

Options:

Embossment Roller

Plane, Single Set, Double Sets Can be ordered

Color Printing Unit

1-2Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic can be ordered





Automatic Toilet Paper Making Mahcine
Automatic Color Gluing Kitchen Towel Making Machine

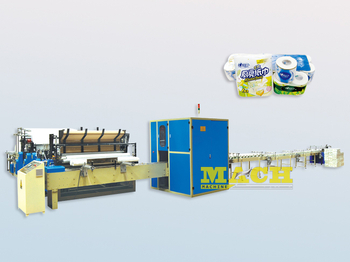

Fully Automatic Toilet Paper Production Line
Automatic Paper Napkin Making Machine
Two Lanes Paper Napkin Making Machine
Automatic Facial Tissue Making Machine

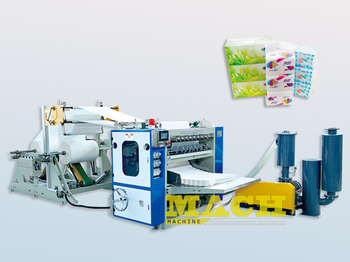

High Speed Automatic Facial Tissue Making Machine
Semi automatic toilet paper making machine
