5-20 Sheets per Bag Wet Tissue Making and Packing Machine

5-20 Sheets per Bag Wet Tissue Making and Packing Machine

Functions: Wet Tissue Making, Liquid Filling, Multiple Packing

Capacity: 200-300 pcs/ min

Quantity:
  • MACH
  • 8441.8090
  • New
  • Wet Tissue Making and Packing Machine
  • 200-300 pcs/ min
  • 380V / 50Hz, 3 Phase
  • 3600*1100*1800mm ( L*W*H);5700*1100*2200 mm (L*W*H
  • 3000kg;1500 kg
  • FOUR Sides Sealing
  • (140-180)*(70-90)*(10-30) mm (L*W)
  • Double agitating drums with agitator
  • “Z” Fold and double “ Z” Fold
5-20 Sheets per Bag Wet Tissue Making and Packing Machine

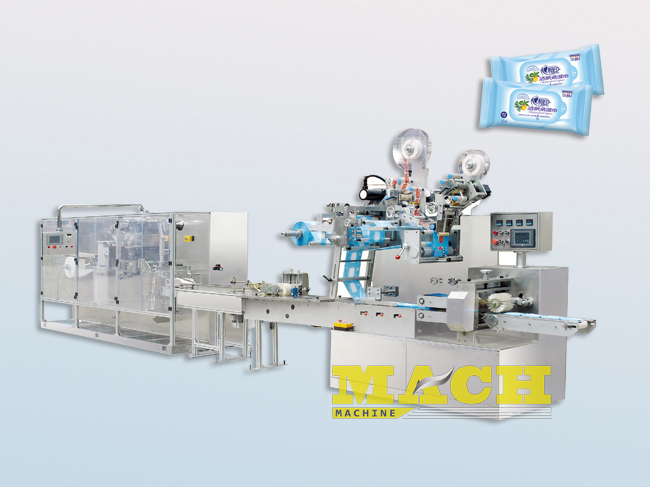

5-20 pcs per bag wte wipes production line




Functions and Features

The 5-20 Sheets per Bag Wet Tissue Making and Packing Machine is suitable for 5-20pcs per package packing.

The operation of the 5-20 Sheets per Bag Wet Tissue Making and Packing Machine is easy and the function is very steady.The part with touch with the liquid is made by stainless steel.

The 5-20 Sheets per Bag Wet Tissue Making and Packing Machine is controlled by PLC, the machine with nice outline.

The work flow: unrolling raw material-folding-wetting-cutting-pile and counting tissue-transport tissue to packing-output finished products.All the processes are finished on the machine.

The production speed of 5-20 Sheets per Bag Wet Tissue Making and Packing Machine is higher and with sanitary during the processing.

The finished production of 5-20 Sheets per Bag Wet Tissue Making and Packing Machine can be lady wipes, daily clearing wipes, remove make up wipes and so on.



Main Specification


Main technical parameter of folding part
Electrical source 380 V,50HZ
Total power 8KW
Suitable material Spun-lace non-woven fabric, hot-rolling non-woven fabric
Specification of material 40-80g/Square meter
Production size  (Unfold): (160-220)*(180-220)mm ( L*W)
Production size ( fold) (80-110)*(70-80)mm (L*W)
Production speed 200-300 pcs/ min
Folding way “Z” Fold and double “ Z” Fold
Counting way Auto counting system, the number pcs per pile can be changed.
Controlling system all machine adopt PLC control system。
Humidification agitation Double agitating drums with agitator
Machine size 3600*1100*1800mm ( L*W*H)
Water tank size 2000*1100*1900mm ( L*W*H)
Weight of machine 3000kg
Main technical parameter of packing part
Electrical source 380 V,50HZ
Total power 6KW
Production size (140-180)*(70-90)*(10-30) mm (L*W)
Production speed: 20-40 package per min
Packing film PE&PET, OPP&PE
Controlling system PLC control, color touch screen
Main function of machine Placket unit, Labeling unit, date printing unit, double labeling unit. ( can add small label unit for preventing tear, optional)
Machine size 5700*1100*2200 mm (L*W*H)
Weight of machine 1500 kg
Efficiency >=95%
Waster <=2%
Option The small label system.
