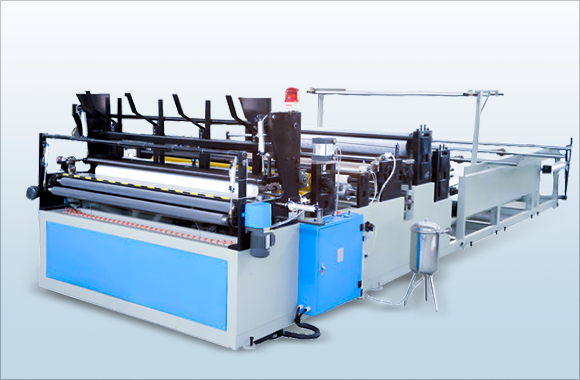

1092B Automatic Small Toilet Tissue Paper Rolls Making Machine
1092B Automatic Small Toilet Tissue Paper Rolls Making Machine
1092B Automatic Small Toilet Tissue Paper Rolls Making Machine
1092B Automatic Small Toilet Tissue Paper Rolls Making Machine
1092B Automatic Small Toilet Tissue Paper Rolls Making Machine
1092B Automatic Small Toilet Tissue Paper Rolls Making Machine
1092B Automatic Small Toilet Tissue Paper Rolls Making Machine
Share to:

1092B Automatic Small Toilet Tissue Paper Rolls Making Machine

Functions: Embossing, Perforation, Rewinding, Cutting.

Capacity: 120 meter/min

Width of Jumbo toilet roll: 1350mm

Quantity:
Inquire Add to Basket

  • 1092B
  • MACh
  • 8441.8090
  • New
  • PLC, touch screen
  • Paper Slitting and Rewinding Machine
  • 0-200m/min 15000-25000 rolls/8 hours
  • 380V, 50Hz, 3 Phases or 220V, 60Hz, 3 Phases
  • 1350mm
  • 7800*2600*1720mm
  • 3500~4500kg
  • CE
  • one year after receiving our machine
1092B Automatic Small Toilet Tissue Paper Rolls Making Machine

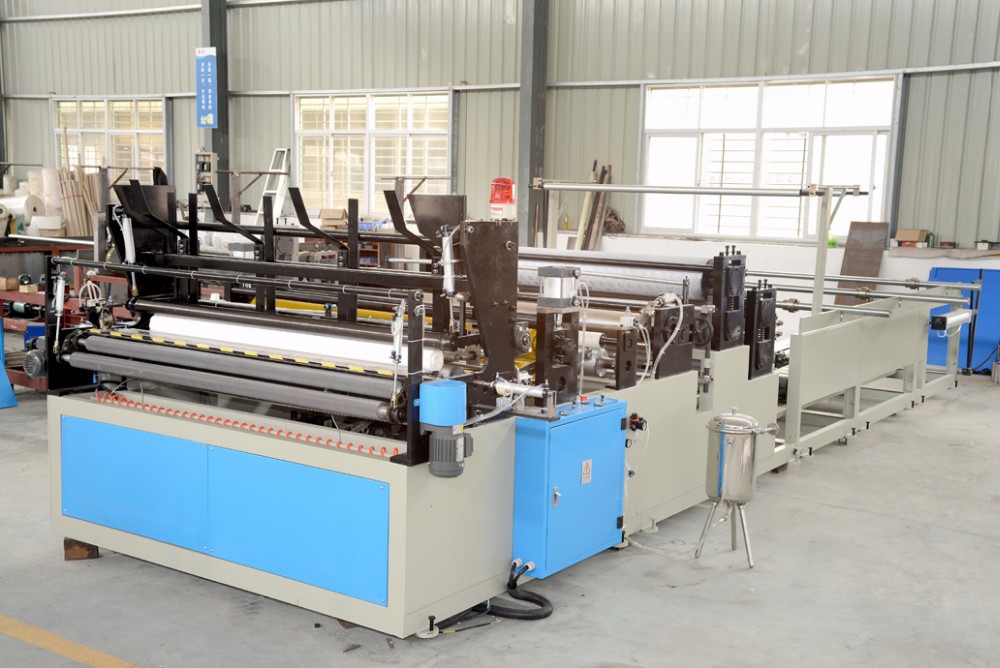

small toilet paper roll manufacturing machine

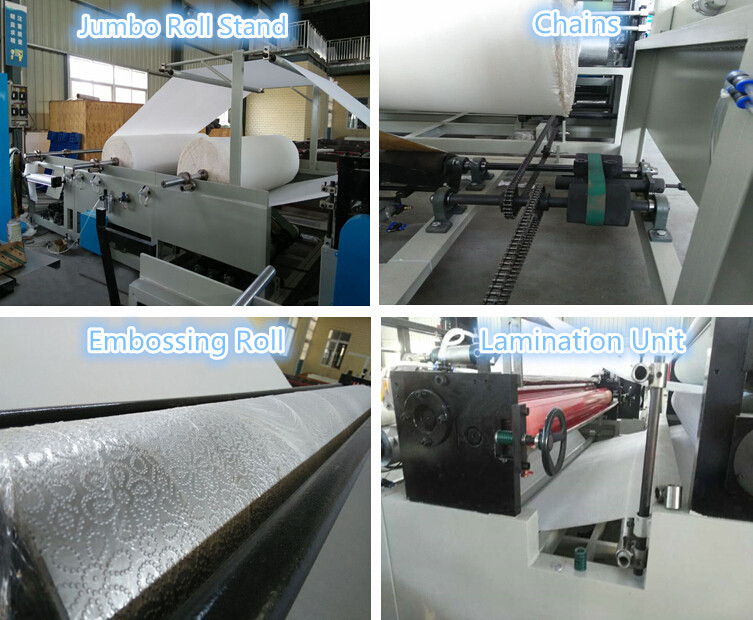

small toilet paper roll manufacturing machine

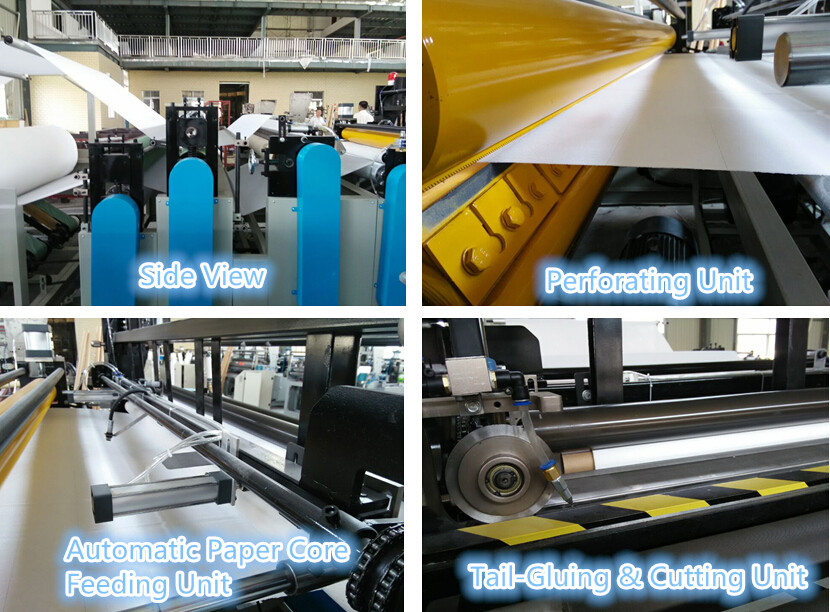

small toilet paper roll rewinding machine



Functions and Features

Automatic paper tube replacement device, without artificial wearing paper tube, within 1 minute can easily adjust to any kind of paper tube specifications.

Automatic trimming, sealing synchronization time to complete, finished will left10-18mm tail, to reducing product costs and waste.

Adopt with advanced PLC control, production parameters fault screen display.

Precision spiral soft knife, 3 knife punch, low noise, perforation clearer, great adjustment range gearbox.

Three horizontal paper unwind stander, pneumatic to load paper, wide leather belt pneumatic to feed, each  have its own  paper roll adjusting device.

Embossing device use steel to rubber roller, soft, embossed clear and beautiful.

Use before and after the jog switch guide paper, the operation easier and safer.

With one set of manual band saw cutting machine. It can sut the long toilet rolls to small toilet rolls.

Color printing device (need order)

 CE Certificate



Main Specification
Model 1092B 1575B 1760B 2200B 2500B 2800B
Max.Jumbo  Roll Width 1350 1750 1900 2150 2400 2700
Max.Jumbo  Roll diameter Standard φ1100mm unless otherwise specified
Jumbo Roll Standings 3 stands (pls specify when order)  Paper gram weight 13-16 g/m2, lifted by Pneumatic loading
Jumbo Roll Inner Diameter Standardφ3”(76.2mm) unless otherwise specified
Data setting HMI
Programming controller PLC, touch screen
Operate Speed 0-200m/min 11200-20000 rolls/8hours
Finished Log Outer diameter φ90-140mm
Finished Log Inner diameter φ25-50m
Diameter of finished log control By Electronic/Air control
Mechanical driving Driving by Stepless gear box
Air -system 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving Frequency conversion speed regulation 9KW 380V,50HZ
Embossing unit Two sets steel to rubber
Dimensions 6x3x1.7 (length x width x height);(m)
Weight 3T-4T(depends on the Model you have )
Options:
Embossment Roller Plane, Single Set, Double Sets Can be ordered
Color Printing Unit 1-2Colors can be order
Lamination Unit Can be Ordered
Edge-Embossing Line Steel to Steel Operate by Pneumatic can be ordered
